Scenic Draft Extras: Five Shapes Out of the Library

scenic-draft is a dependency-free TypeScript library that compiles a declarative scene (a background plus a tree of signed distance functions and constructive solid geometry) into a GLSL fragment shader, and progressively path-traces it on a WebGL2 canvas.

0.21.0 makes it smaller. Three primitives that had been in the core library (hexPrism, triPrism and link) are no longer in it. They are in a new package scenic-draft-extras, along with two new ones: quad and quads, the four-cornered counterparts of the triangle and triangles that arrived in the core library in 0.21.0. I'm aiming to stabilise the core library (if anything make it smaller).

Install with, for example:

pnpm add scenic-draft-extras

import { hexPrism, link, quad, quads, triPrism } from 'scenic-draft-extras'

A hexagonal prism, a triangular prism, three links of chain, an open box from quads, and the backdrop panel behind them from quad.

The five


`hexPrism(radius, height)`	A hexagonal prism along y. `radius` is the apothem — centre to the middle of a flat, not to a corner.
`triPrism(radius, height)`	An equilateral triangular prism along y. `radius` is the circumradius, so the sides are `radius * √3` long.
`link(major, minor, height)`	A chain link: a torus stood on edge in the x–y plane and drawn apart along y by `height`.
`quad(a, b, c, d, thickness)`	A quadrilateral face through four corners given in order around it, `thickness` out from their plane on each side.
`quads(faces, thickness)`	A whole list of those as one shape: a folded plate, a set of panels, a quad mesh.

Every measure is a half-measure, as everywhere in scenic-draft: a height is the half-length and a thickness the half-thickness. Honestly this may not have been the best idea though is often used in the SDF world for convenience.

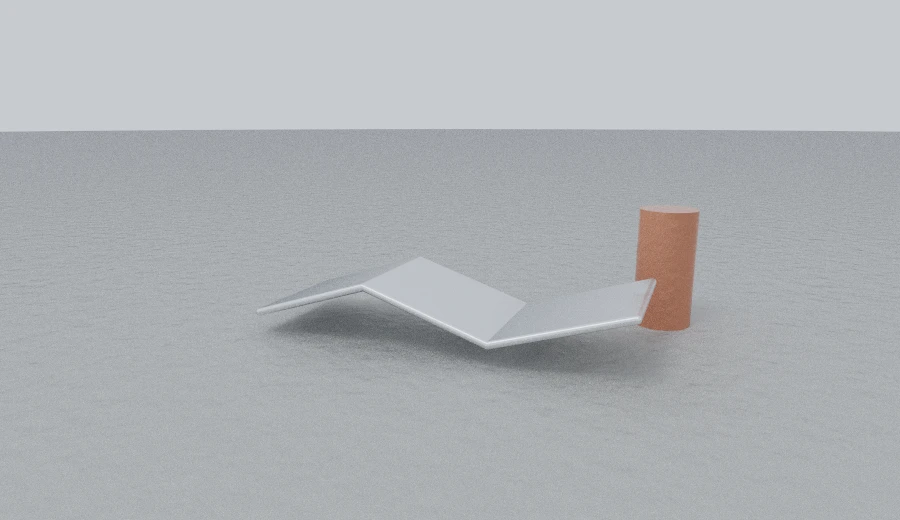

A folded aluminium plate of three panels, given as the corners of three quadrilaterals, beside a terracotta cylinder.

A quad should have corners that go round it in order and must lie on one plane. All three are checked when the node is built. A face that breaks any of them will be treated as two triangles.

Extending Scenic Draft, or how does this work?

0.19.0 added custom(), where a scene carries a distance function you wrote and the library calls it wherever the tree walk has reached. scenic-draft-extras also serves as an example of how to do this. So, for example, hexPrism(0.7, 0.9) builds a custom node holding Quilez's hexagonal prism field — the same source the compiler used to write inline — with the two numbers as its arguments:

float map(vec3 p) {
  vec3 q0 = vec3(0.92106 * p.x - 0.38942 * p.z, p.y, 0.92106 * p.z + 0.38942 * p.x);
  float d1 = sdHexPrism(q0, 0.7, 0.9);
  return d1;
}

That is the line the built-in used to compile to, unchanged, which is the whole point: the shapes did not become slower, or less exact, or harder to use, by moving out. translate, repeat, paint, the smooth booleans, checkField and the headless exporters all take these as they take anything else, because a custom node is an ordinary node and always was.

The package fixes scenic-draft and scenic-draft-fluent at exact versions, so the compiler reading these fields is the one they were written for.

Fluent API

scenic-draft-extras returns plain nodes but the package also supports the fluent API. To use this import from scenic-draft-extras/fluent which returns chainable shapes.

import { hexPrism } from 'scenic-draft-extras/fluent'

hexPrism(0.7, 0.9)
  .rotateY(Math.PI / 6)
  .paint(materials.brass)
  .union(sphere(0.4))

They build the identical node, since a fluent Shape is a SceneNode with the chaining methods on its prototype, so the two mix freely in one scene. There is nothing else in the fluent entry point: the vocabulary a scene is written in stays scenic-draft-fluent's, and this package adds five leaves to it rather than wrapping it again.

The GLSL, on purpose

HEX_PRISM_GLSL, TRI_PRISM_GLSL, LINK_GLSL and quadFacesGlsl(count) are exported, because a worked example of a custom primitive is the most useful thing in a package of custom primitives. They are Inigo Quilez's distance functions, unchanged from the ones the compiler used to write inline.

Everything at once

All five, under a sunset, through a 45mm at f/2.8:

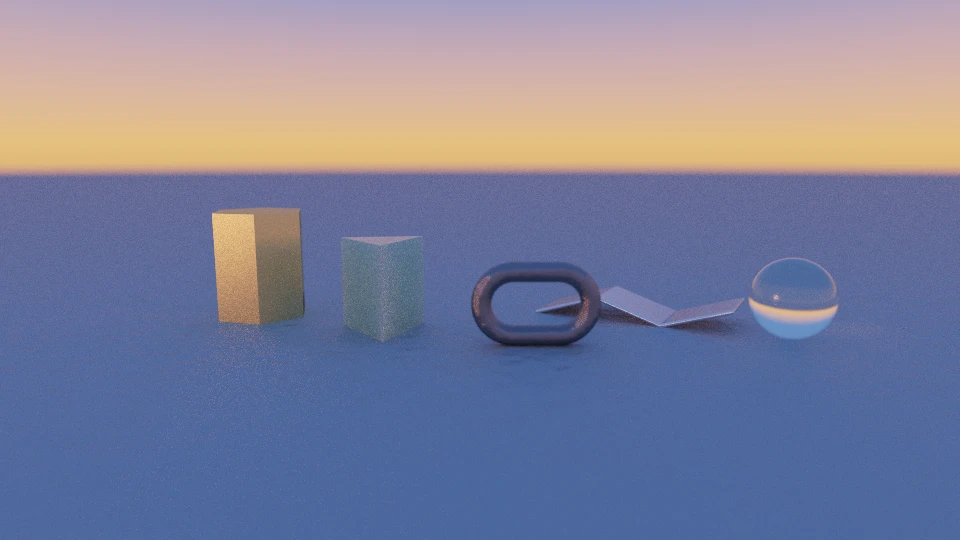

All five shapes again under a sunset with a shallow depth of field: hexagonal prism, triangular prism, chain link, folded plate and a glass sphere.

None of it is special from the library's side. Every builder returns a plain SceneNode; nothing needs unwrapping and nothing needs to know these came from somewhere else. That is the argument the package exists to make — not that a chain link is worth having, but that adding one should never have needed the compiler's permission.

Installing

pnpm add scenic-draft-extras # it carries scenic-draft and scenic-draft-fluent

Like every scenic-draft package it is PolyForm Noncommercial 1.0.0: free for personal projects, study, teaching and public bodies, with commercial use a separate conversation.

Documentation lives at scenic-draft.pages.dev.
